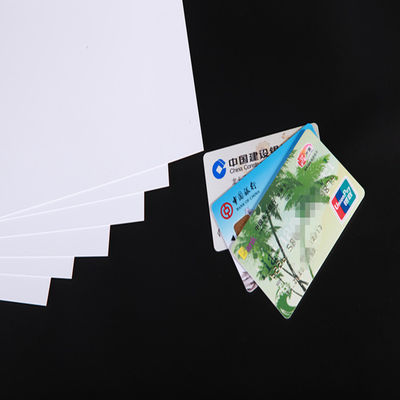

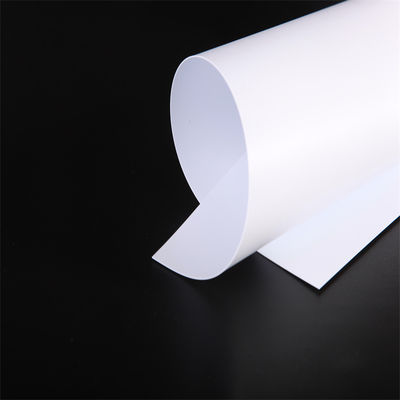

Offset Printing White PVC Core / Cards Sheet Middle Layer For Plastic Cards
Our white PVC core sheet is the ideal material for producing credit cards that are durable, secure, and aesthetically appealing. Whether you're creating plastic cards, bank cards, RFID credit cards, or loyalty cards, our high-quality core material ensures your cards are built to last.
PVC Core Sheet is strong, durable, and easy to die cut and shape into your custom designs. Intended for outdoor advertising, our lightweight PVC Core Sheet is a quality material for an affordable price. Waterproof and warp-resistant, PVC Core can be printed onto directly and is perfect for commercial signage.
PVC core sheets for cards are inner layers of plastic used in the production of multi-layer cards like ID cards, smart cards, and bank cards. Made from polyvinyl chloride, they provide structure, rigidity, and durability. These sheets are typically laminated with overlay films and printable surfaces to create finished, high-quality cards.
Key Features:
-
Material: 100% Virgin White PVC
-
Size Options: Standard sheets (e.g., 310mm × 480mm) and customizable dimensions available
-
Thickness Range: 0.10mm – 0.80mm (custom thickness upon request)
-
Surface Finish: Matt, dust-free, and printable
-
Compatibility: Suitable for offset, screen, and digital printing
-
Applications: Used as the middle layer in laminated plastic cards (PVC card core)
Why Choose Our PVC Core Sheet?
-
High bonding strength with overlay films
-
Excellent thermal and dimensional stability during lamination
-
Consistent whiteness and uniform thickness
-
Free from impurities, ensuring sharp and vivid print results
Applications Include:
-
ID cards
-
Bank cards
-
RFID smart cards
-
Transportation cards
-
Gift cards and more
If you’re looking for a high-quality white PVC sheet for card production, our core sheets are your ideal solution for consistency, printability, and long-term performance.
When selecting PVC core sheets for PVC card production, several factors should be taken into consideration:
• Opt for core sheets that provide excellent printability, enabling high-quality printing of graphics, text, and other design elements on the card.
• Consider the resistance of the PVC core sheet to chemicals, as cards may come into contact with substances like solvents or cleaning agents.
• Choose a thickness that aligns with the intended use of the card. Thicker core sheets offer more durability, while thinner ones provide increased flexibility.
• Ensure that the core sheet strikes the right balance between rigidity and flexibility, allowing the card to withstand bending without breaking.
PVC core sheets are widely used in the production of various types of cards, including ID cards, access cards, bank cards, smart cards, business cards, IC cards, Contactless cards, SIM cards, royal cards and other plastic cards.
|
Serial
|
Item
|
|
Unit
|
Standard
|
|
number
|
PVC core sheet
|
|
|
|
|
|
|
|
|
|
|
1
|
Width
|
|
mm
|
As your requirements
|
|
|
|
|
|
|
|
2
|
Length
|
|
mm
|
As your requirements
|
|
|
|
|
|
|
|
3
|
Thickness
|
|
mm
|
0.1-0.8
|
|
|
|
|
|
|
|
|
4
|
Surface Roughness Ra (4#)
|
|
μm
|
0.7-1.8
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5
|
Surface Roughness Rz (5#)
|
|
μm
|
4-12
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
6
|
Tensile Strength
|
MD
|
|
MPa
|
≥45
|
|
|
|
|
|
|
|
|
7
|
Tensile Strength
|
CD
|
|
MPa
|
≥43
|
|
|
|
|
|
|
|
|
8
|
Heat Shrinkage MD
|
|
%
|
≥-6.0(140℃+-2
|
|
|
|
|
|
℃/10min)
|
|
|
|
|
|
|
|
|
9
|
Heat Shrinkage CD
|
|
%
|
≤+2.2(140℃+-2
|
|
|
|
|
|
℃/10min)
|
|
|
|
|
|
|
|
|
10
|
Surface
|
|
—
|
Mate/Mate
|
|
|
|
|
|
|
|
|
11
|
Surface Tension (4#)
|
|
Dynes/cm
|
≥38
|
|
|
|
|
|
|
|
12
|
Surface Tension (5#)
|
|
Dynes/cm
|
≥38
|
|
|
|
|
|
|
|
13
|
Density
|
|
g/cm3
|
1.42+-0.05
|
|
|
|
|
|
|
|
14
|
Vicat Softening Point
|
|
℃
|
78+-2(5KG)
|
|
|
|
|
|
|
|
FAQ
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 1-5 days for Sample preparing ,10-15 working days for mass production.
Q3. Do you have any MOQ limit ?
A: Sample is available, Order MOQ is 1000KGS.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Q7: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.1%.
Secondly, during the guarantee period, we will send the new goods with good quality for the faulth. We can discuss the best solution together.
