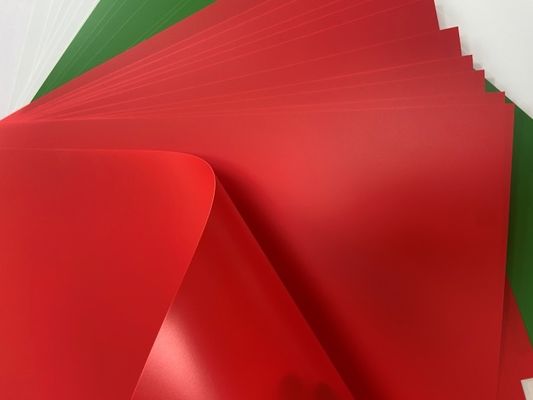

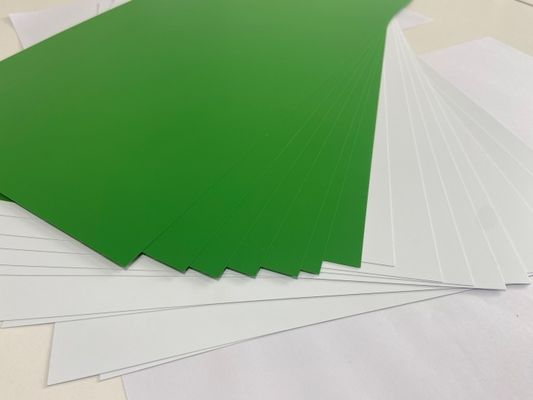

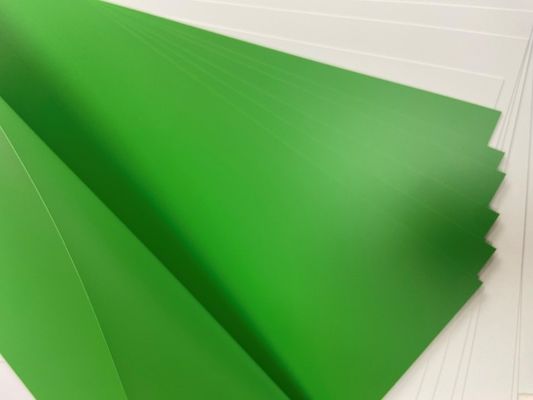

Color PVC Core Sheet Laminated Red / Green For Bank Cards Production
Our Color PVC Core Sheet for Bank Cards is specially engineered for the production of high-quality credit cards, debit cards, and financial smart cards. Available in a range of vibrant colors such as black, red, blue, and gold, these sheets provide an eye-catching core layer while maintaining excellent lamination strength and compatibility with EMV chip and magnetic stripe technology.
PVC core sheets for cards are inner layers of plastic used in the production of multi-layer cards like bank cards, IC cards, ID cards, smart cards, and other plastic cards. Made from polyvinyl chloride, they provide structure, rigidity, and durability. These sheets are typically laminated with overlay films and printable surfaces to create finished, high-quality cards.
Advantages:
1). Low dust
2). Excellent stable quality
3). Exact sheet size cutting and thickness control
4). Low static easy for sheet feeding
5). Smooth roughness
6). Adjustable VICAT degree
7). Adjustable Opaque degree
8). Perfect packaging for transportation
9). Special formulation according to each client's requirement
10). Surface tension can over 40 Dyne
11).Compatible with magnetic stripe, EMV chip, and hologram application
12). Less than15 days Short Lead Time
13). Best after sell service
PVC core sheets possess specific characteristics that make them ideal for PVC card production. Some notable features include:
• PVC core sheets are available in various thicknesses, ranging from 0.1mm to 0.8mm. The choice of thickness depends on the specific requirements of the card and its intended use.
• The core sheets have an optimal density that strikes a balance between rigidity and flexibility. This characteristic allows the card to withstand everyday wear and tear.
• PVC core sheets have excellent printability, enabling vibrant and high-quality printing of images, text, and other design elements on the card's surface.
When selecting PVC core sheets for PVC card production, several factors should be taken into consideration:
• Opt for core sheets that provide excellent printability, enabling high-quality printing of graphics, text, and other design elements on the card.
• Consider the resistance of the PVC core sheet to chemicals, as cards may come into contact with substances like solvents or cleaning agents.
• Choose a thickness that aligns with the intended use of the card. Thicker core sheets offer more durability, while thinner ones provide increased flexibility.
• Ensure that the core sheet strikes the right balance between rigidity and flexibility, allowing the card to withstand bending without breaking.
PVC core sheets are widely used in the production of various types of cards, including bank cards, ID cards, access cards, smart cards, business cards, IC cards, Contactless cards, SIM cards, royal cards and other plastic cards.
|
Serial
|
Item
|
|
Unit
|
Standard
|
|
number
|
PVC core sheet
|
|
|
|
|
|
|
|
|
|
|
1
|
Width
|
|
mm
|
As your requirements
|
|
|
|
|
|
|
|
2
|
Length
|
|
mm
|
As your requirements
|
|
|
|
|
|
|
|
3
|
Thickness
|
|
mm
|
0.1-0.8
|
|
|
|
|
|
|
|
|
4
|
Surface Roughness Ra (4#)
|
|
μm
|
0.7-1.8
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5
|
Surface Roughness Rz (5#)
|
|
μm
|
4-12
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
6
|
Tensile Strength
|
MD
|
|
MPa
|
≥45
|
|
|
|
|
|
|
|
|
7
|
Tensile Strength
|
CD
|
|
MPa
|
≥43
|
|
|
|
|
|
|
|
|
8
|
Heat Shrinkage MD
|
|
%
|
≥-6.0(140℃+-2
|
|
|
|
|
|
℃/10min)
|
|
|
|
|
|
|
|
|
9
|
Heat Shrinkage CD
|
|
%
|
≤+2.2(140℃+-2
|
|
|
|
|
|
℃/10min)
|
|
|
|
|
|
|
|
|
10
|
Surface
|
|
—
|
Mate/Mate
|
|
|
|
|
|
|
|
|
11
|
Surface Tension (4#)
|
|
Dynes/cm
|
≥38
|
|
|
|
|
|
|
|
12
|
Surface Tension (5#)
|
|
Dynes/cm
|
≥38
|
|
|
|
|
|
|
|
13
|
Density
|
|
g/cm3
|
1.42+-0.05
|
|
|
|
|
|
|
|
14
|
Vicat Softening Point
|
|
℃
|
72+-2(5KG)
|
|
|
|
|
|
|
|
FAQ
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 1-5 days for Sample preparing ,10-15 working days for mass production.
Q3. Do you have any MOQ limit ?
A: Sample is available, Order MOQ is 1000KGS.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Q7: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.1%.
Secondly, during the guarantee period, we will send the new goods with good quality for the faulth. We can discuss the best solution together.
