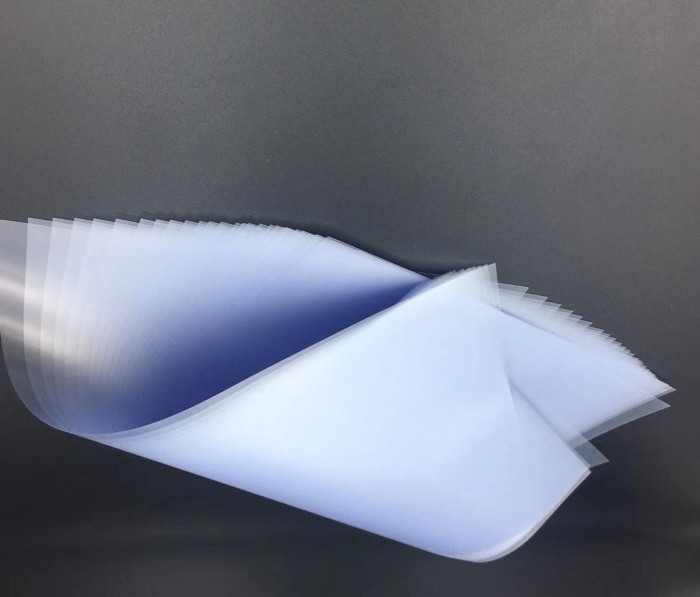

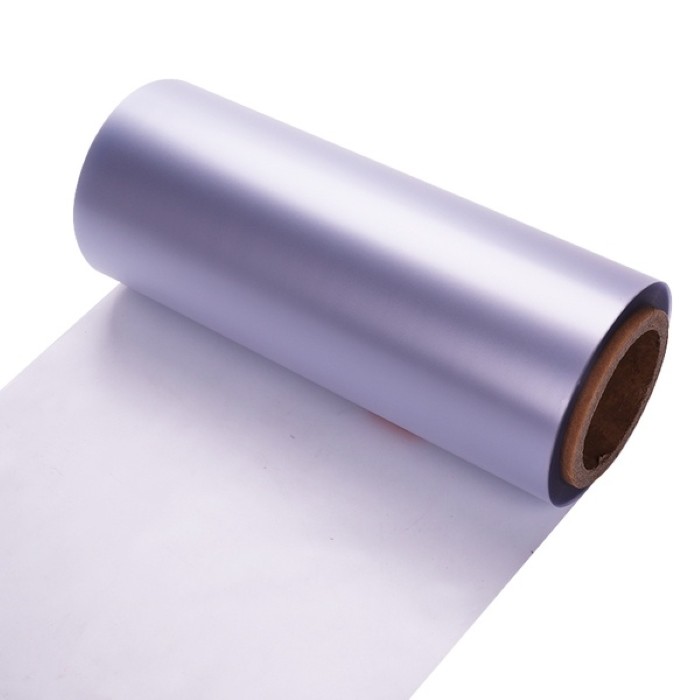

PVC Coated Overlay Film / PVC Cards Film 50micron For Plastic Cards
PVC coated overlay film for plastic cards is a high-performance solution designed to enhance the durability, protection, and aesthetic quality of your cards. Perfect for applications such as ID cards, membership cards, access control cards, gift cards, and loyalty cards, this PVC overlay film offers a protective shield that ensures your cards stay scratch-resistant, UV-resistant, and wear-resistant, even with frequent use.
PVC cards film has higher peel strength and it is suitable for laminating with most of PVC sheets printed by various printers.
PVC coated overlay film is a transparent layer that is applied to the surface of a plastic card. It acts as a protective barrier, shielding the underlying card from scratches, fading, and moisture. The strong coated adhesive ensures that the overlay firmly adheres to the card, providing long-lasting protection.
One side is a smooth surface, another side is coved with glue.
PVC coated overlay film are commonly used in the production of identification cards, such as driver's licenses, ID cards, and access cards. These overlays consist of a thin layer of polyvinyl chloride (PVC) material that is applied on top of the printed card surface. The overlay serves as a protective coating, enhancing the durability and longevity of the card.
Applications:
• Government-issued cards and driver’s licenses
• Contactless RFID cards
• Financial and healthcare cards
• Custom-designed gift or loyalty cards
• Identity cards and smart cards
Features:
• Suitable for conventional ink and UV ink.
• Easy for magnetic stripe tape laying.
• Environmentally friendly, less emission to the atmosphere
• Suitable for hot press lamination machine type.
• Provide high bonding strength and give finished cards a glossy surface.
• Size is customized Card Film PVC Coated Overlay.
• Simplify card production process.
• Anti-abrasion, extend the life of cards.
|
Serial
|
Item
|
|
Unit
|
Standard
|
|
number
|
PVC Coated Overlay Film
|
|
|
|
|
|
|
|
|
|
|
1
|
Width
|
|
mm
|
As client’s requirements
|
|
|
|
|
|
|
|
2
|
Length
|
|
mm
|
As client’s requirements
|
|
|
|
|
|
|
|
3
|
Thickness
|
|
mm
|
0.05-0.2mm
|
|
|
|
|
|
|
|
|
4
|
Tensile Strength
|
MD
|
|
MPa
|
≥40
|
|
|
|
|
|
|
|
|
5
|
Tensile Strength
|
CD
|
|
MPa
|
≥35
|
|
|
|
|
|
|
|
|
6
|
Heat Shrinkage MD
|
|
%
|
≥ -45(140℃+-2
|
|
|
|
|
|
℃/10min)
|
|
|
|
|
|
|
|
|
7
|
Heat Shrinkage CD
|
|
%
|
≤ 30(140℃+-2
|
|
|
|
|
|
℃/10min)
|
|
|
|
|
|
|
|
|
8
|
Density
|
|
g/cm3
|
1.26+-0.04
|
|
|
|
|
|
|
|
9
|
Vicat Softening Point
|
|
℃
|
74+-5(5KG)
|
|
|
|
|
|
|
|
10
|
Peel Strength
|
|
N
|
≥4
|
|
|
|
|
|
|
FAQ
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 1-5 days for Sample preparing ,10-15 working days for mass production.
Q3. Do you have any MOQ limit ?
A: Sample is available, Order MOQ is 200KGS.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Q7: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.1%.
Secondly, during the guarantee period, we will send the new goods with good quality for the faulth. We can discuss the best solution together.
