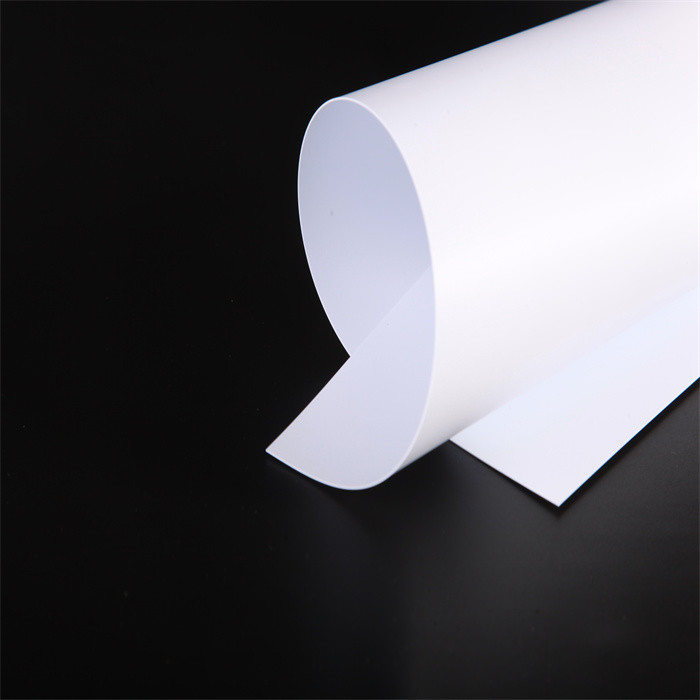

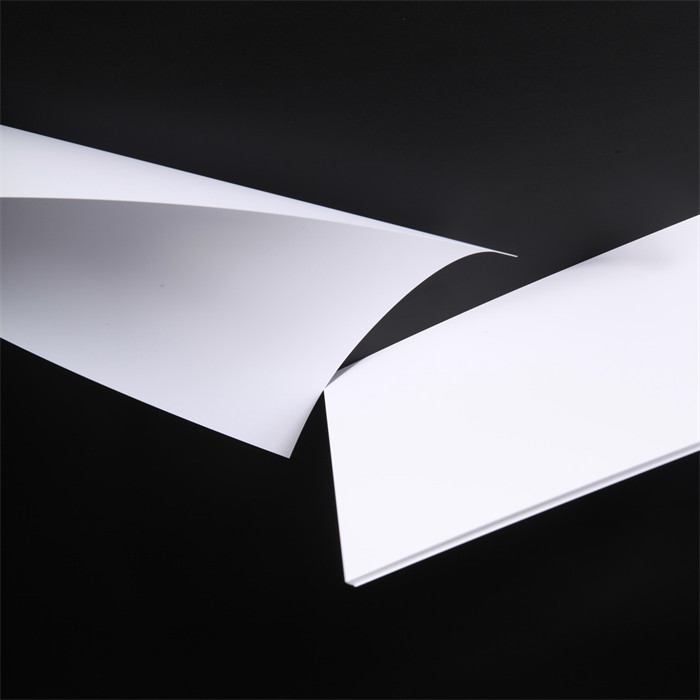

Offset Printing 100micron / 0.1mm Thickness White PVC Core Sheet For Bank Cards

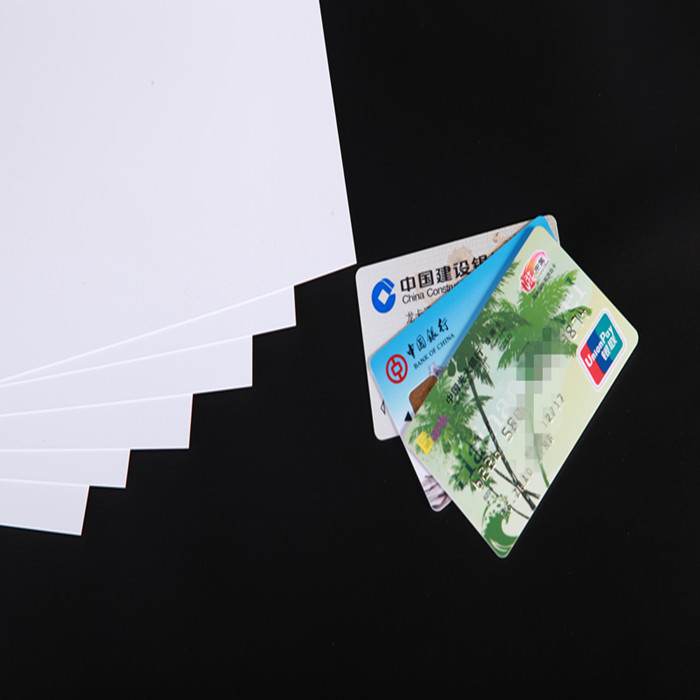

White PVC Core Sheets for Bank Cards are engineered to meet the highest standards of the banking and financial industries. These premium PVC core sheets provide the perfect base for creating credit cards, debit cards, ATM cards, and other financial cards, offering exceptional durability, security, and customization options.
With a thickness range of 0.1-0.8mm and a thickness tolerance of ±5%, the PVC Core Sheet is ideal for printing applications. It is compatible with the whole series of offset printers, making it a versatile option for businesses looking to print on plastic sheets.
Key Features:
-
Material: 100% Virgin White PVC
-
Size Options: Standard sheets and customizable dimensions available
-
Thickness Range: 0.10mm – 0.80mm (custom thickness upon request)
-
Surface Finish: Matt and printable
-
Compatibility: Suitable for offset, screen, and digital printing
-
Applications: Used as the middle layer in laminated bank cards and other plastic cards (PVC card core)
Why Choose Our PVC Core Sheet?
-
High bonding strength with overlay films
-
Excellent thermal and dimensional stability during lamination
-
Consistent whiteness and uniform thickness
-
Free from impurities, ensuring sharp and vivid print results
Applications Include:
-
ID cards
-
Bank cards
-
RFID smart cards
-
Transportation cards
-
Gift cards and more
If you’re looking for a high-quality white PVC sheet for card production, our core sheets are your ideal solution for consistency, printability, and long-term performance.
When selecting PVC core sheets for PVC card production, several factors should be taken into consideration:
• Opt for core sheets that provide excellent printability, enabling high-quality printing of graphics, text, and other design elements on the card.
• Choose a thickness that aligns with the intended use of the card. Thicker core sheets offer more durability, while thinner ones provide increased flexibility.
• Ensure that the core sheet strikes the right balance between rigidity and flexibility, allowing the card to withstand bending without breaking.
PVC core sheets are widely used in the production of various types of cards, including ID cards, access cards, bank cards, smart cards, business cards, IC cards, Contactless cards, SIM cards, royal cards and other plastic cards.
|
Serial
|
Item
|
|
Unit
|
Standard
|
|
number
|
PVC core sheet
|
|
|
|
|
|
|
|
|
|
|
1
|
Width
|
|
mm
|
As your requirements
|
|
|
|
|
|
|
|
2
|
Length
|
|
mm
|
As your requirements
|
|
|
|
|
|
|
|
3
|
Thickness
|
|
mm
|
0.1-0.8
|
|
|
|
|
|
|
|
|
4
|
Surface Roughness Ra (4#)
|
|
μm
|
0.7-1.8
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5
|
Surface Roughness Rz (5#)
|
|
μm
|
4-12
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
6
|
Tensile Strength
|
MD
|
|
MPa
|
≥45
|
|
|
|
|
|
|
|
|
7
|
Tensile Strength
|
CD
|
|
MPa
|
≥43
|
|
|
|
|
|
|
|
|
8
|
Heat Shrinkage MD
|
|
%
|
≥-6.0(140℃+-2
|
|
|
|
|
|
℃/10min)
|
|
|
|
|
|
|
|
|
9
|
Heat Shrinkage CD
|
|
%
|
≤+2.2(140℃+-2
|
|
|
|
|
|
℃/10min)
|
|
|
|
|
|
|
|
|
10
|
Surface
|
|
—
|
Mate/Mate
|
|
|
|
|
|
|
|
|
11
|
Surface Tension (4#)
|
|
Dynes/cm
|
≥38
|
|
|
|
|
|
|
|
12
|
Surface Tension (5#)
|
|
Dynes/cm
|
≥38
|
|
|
|
|
|
|
|
13
|
Density
|
|
g/cm3
|
1.42+-0.05
|
|
|
|
|
|
|
|
14
|
Vicat Softening Point
|
|
℃
|
72+-2(5KG)
|
|
|
|
|
|
|
|
FAQ
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 1-5 days for Sample preparing ,10-15 working days for mass production.
Q3. Do you have any MOQ limit ?
A: Sample is available, Order MOQ is 1000KGS.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Q7: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.1%.
Secondly, during the guarantee period, we will send the new goods with good quality for the faulth. We can discuss the best solution together.
