White PVC Core Sheet 200micron Thickness For Contactless Cards Lamination

1000KGS
MOQ
Negotiable
Price
White PVC Core Sheet 200micron Thickness For Contactless Cards Lamination
Features Gallery Product Description Request A Quote
Features
Specifications
Product: White PVC Core Sheet
Material: PVC
Color: White Or Colored
Thickness: 0.1-0.87mm
Size: As Client's Requirements
Application: For Producing The IC Cards, Contactless Cards And Other Plastic Cards
Vicat: 78 Degree
Printing: Offset Printing And Silk Screen Printing
Surface: Matt/Matt
Dynes: 38
Highlight:

pvc core sheet 200micron

,

200micron pc core sheet

,

offset printing pc core sheet

Basic Infomation
Place of Origin: China
Brand Name: ZL
Model Number: ZL-PVC core-1
Payment & Shipping Terms

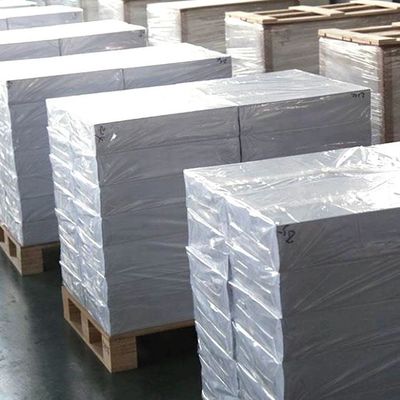

Packaging Details: Plastic film and wood pallet
Delivery Time: 10-15 working days
Payment Terms: L/C,D/P,T/T,Western Union,MoneyGram
Supply Ability: 500 tons per month
Product Description

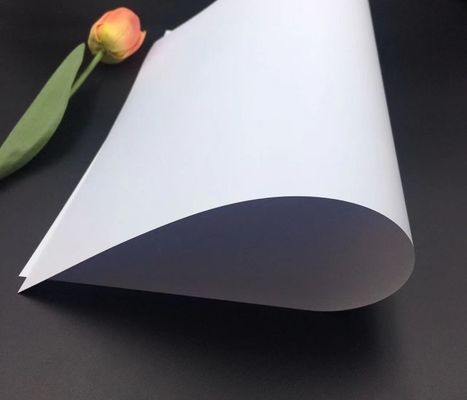

White PVC Core Sheet 200micron Thickness For Contactless Cards Lamination


The white PVC core sheet is specially designed for the production of contactless cards, offering unmatched durability, flexibility, and high performance. Perfect for manufacturers and businesses in the card industry, this PVC sheet ensures excellent print quality and reliable functionality for various applications, including ID cards, access control cards, payment cards, and more.


PVC Core Sheet is strong, durable, and easy to die cut and shape into your custom designs. Intended for outdoor advertising, our lightweight PVC Core Sheet is a quality material for an affordable price. Waterproof and warp-resistant, PVC Core can be printed onto directly and is perfect for commercial signage.


Key Features:

  • Superior Durability: The white PVC core sheet offers outstanding resistance to bending, tearing, and wear, making it ideal for long-lasting contactless card solutions.

  • Optimal Flexibility: With its perfect balance of flexibility and strength, our PVC sheet is easy to handle during the production process.

  • High Print Quality: Achieve sharp, vibrant prints with excellent color reproduction, ensuring a professional finish for your contactless cards.

  • Excellent Conductivity: Designed to work seamlessly with RFID technology, ensuring smooth communication between the card and card reader.

  • Eco-Friendly and Cost-Effective: Manufactured to meet industry standards while being both cost-efficient and environmentally responsible.

Applications:

  • Contactless Payment Cards

  • Access Control Cards

  • ID & Membership Cards

  • Transport & Loyalty Cards

  • Smart Cards

PVC core sheets are widely used in the production of various types of cards, including IC cards, Contactless cards, ID cards, access cards, bank cards, smart cards, business cards, SIM cards, royal cards and other plastic cards.


Our white PVC core sheets are available in a variety of thicknesses to meet your specific needs. Perfect for both small and large-scale production runs, you can trust our product for high-quality, reliable contactless cards that stand out in performance and appearance.

Serial

Item



Unit

Standard

number

PVC core sheet

















1

Width



mm

As your requirements











2

Length



mm

As your requirements











3

Thickness



mm

0.1-0.8













4

Surface Roughness Ra (4#)



μm

0.7-1.8































5

Surface Roughness Rz (5#)



μm

4-12

































6

Tensile Strength





MD



MPa

≥45













7

Tensile Strength

CD



MPa

≥43















8

Heat Shrinkage           MD



%

≥-6.0(140℃+-2









℃/10min)













9

 Heat Shrinkage           CD



%

≤+2.2(140℃+-2









℃/10min)













10

          Surface



Mate/Mate













11

Surface Tension (4#)



Dynes/cm

≥38











12

Surface Tension (5#)



Dynes/cm

≥38











13

Density



g/cm3

1.42+-0.05











14

Vicat Softening Point



78+-2(5KG)












White PVC Core Sheet 200micron Thickness For Contactless Cards Lamination 0

White PVC Core Sheet 200micron Thickness For Contactless Cards Lamination 1

White PVC Core Sheet 200micron Thickness For Contactless Cards Lamination 2



FAQ



Q1. Can I have a sample order ?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A: 1-5 days for Sample preparing ,10-15 working days for mass production.



Q3. Do you have any MOQ limit ?

A: Sample is available,  Order MOQ is 1000KGS.



Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days  to arrive. Airline and sea shipping also optional.



Q5. How to proceed an order ?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.



Q6: Do you offer guarantee for the products?

A: Yes, we offer 5 years warranty to our products.



Q7: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.1%.



Secondly, during the guarantee period, we will send the new goods with good quality for the faulth. We can discuss the best solution together.
