Customizable White PVC Core Sheet 0.25mm For Plastic Cards Lamination / Solution

1000KGS
MOQ
Negotiable
Price
Customizable White PVC Core Sheet 0.25mm For Plastic Cards Lamination / Solution
Features Gallery Product Description Request A Quote
Features
Specifications
Product: White PVC Core Sheet
Material: PVC
Color: White Or Colored
Thickness: 0.1-0.79mm
Size: As Client's Requirements
Applications: For Producing The Smart Cards And Other Plastic Cards
Vicat Point: 78 Degree
Printing Type: Offset Printing And Silk Screen Printing
Surface: Matt
Highlight:

White PVC Core Sheet 0.25mm

,

Customizable PVC Card Laminating Sheets

,

0.25mm Plastic Card Lamination Sheets

Basic Infomation
Place of Origin: China
Brand Name: ZL
Model Number: ZL-PVC core-1
Payment & Shipping Terms
Packaging Details: Plastic film and wood pallet
Delivery Time: 10-15 working days
Payment Terms: L/C,D/P,T/T,Western Union,MoneyGram
Supply Ability: 500 tons per month
Product Description

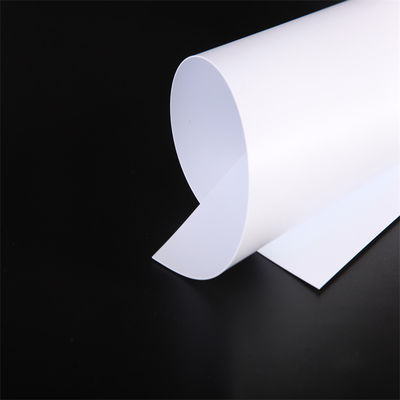

White PVC Core Sheet 0.25mm For Plastic Cards Lamination / Solution



The component of this PVC core sheet material is a polyethylene material. It has the advantages of wear-resistance, corrosion-resistance and elegant features ,etc. It can be applied to the basic material usage of PVC screen printing, offset printing card, common bank cards, all kinds of telephone cards and VIP cards ,etc.



Polyethylene chloride (PVC) is the most prevalent material used for plastic cards. Composite cards, which are a combination of PVC core sheets and overlay films, provide additional durability and are ideal for use with a commercial lamination module.



The use of PVC core sheets in PVC card production offers several advantages:



• PVC core sheets provide an affordable option for card manufacturers without compromising on quality. They offer a cost-effective solution for producing large quantities of PVC cards.



• PVC core sheets ensure the longevity of PVC cards, making them resistant to damage and extending their lifespan.



• The core sheets can be customized to meet specific requirements, such as size, shape, and thickness, making them suitable for various card applications.



• PVC core sheets can be easily tailored to accommodate different card sizes, shapes, and design requirements. This flexibility allows for the creation of unique and customized PVC cards.



PVC core sheets possess specific characteristics that make them ideal for PVC card production. Some notable features include:



• PVC core sheets are available in various thicknesses, ranging from 0.1mm to 0.8mm. The choice of thickness depends on the specific requirements of the card and its intended use.



• The core sheets have an optimal density that strikes a balance between rigidity and flexibility. This characteristic allows the card to withstand everyday wear and tear.



• PVC core sheets have excellent printability, enabling vibrant and high-quality printing of images, text, and other design elements on the card's surface.



When selecting PVC core sheets for PVC card production, several factors should be taken into consideration:



Opt for core sheets that provide excellent printability, enabling high-quality printing of graphics, text, and other design elements on the card.



• Consider the resistance of the PVC core sheet to chemicals, as cards may come into contact with substances like solvents or cleaning agents.



Choose a thickness that aligns with the intended use of the card. Thicker core sheets offer more durability, while thinner ones provide increased flexibility.



Ensure that the core sheet strikes the right balance between rigidity and flexibility, allowing the card to withstand bending without breaking.



PVC core sheets are widely used in the production of various types of cards, including ID cards, access cards, bank cards, smart cards, business cards, IC cards, Contactless cards, SIM cards, royal cards and other plastic cards.

Serial

Item



Unit

Standard

number

PVC core sheet

















1

Width



mm

As your requirements











2

Length



mm

As your requirements











3

Thickness



mm

0.1-0.8













4

Surface Roughness Ra (4#)



μm

0.7-1.8































5

Surface Roughness Rz (5#)



μm

4-12

































6

Tensile Strength





MD



MPa

≥45













7

Tensile Strength

CD



MPa

≥43















8

Heat Shrinkage           MD



%

≥-6.0(140℃+-2









℃/10min)













9

 Heat Shrinkage           CD



%

≤+2.2(140℃+-2









℃/10min)













10

          Surface



Mate/Mate













11

Surface Tension (4#)



Dynes/cm

≥38











12

Surface Tension (5#)



Dynes/cm

≥38











13

Density



g/cm3

1.42+-0.05











14

Vicat Softening Point



78+-2(5KG)













Customizable White PVC Core Sheet 0.25mm For Plastic Cards Lamination / Solution 0

Customizable White PVC Core Sheet 0.25mm For Plastic Cards Lamination / Solution 1

Customizable White PVC Core Sheet 0.25mm For Plastic Cards Lamination / Solution 2



FAQ



Q1. Can I have a sample order ?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A: 1-5 days for Sample preparing ,10-15 working days for mass production.



Q3. Do you have any MOQ limit ?

A: Sample is available,  Order MOQ is 1000KGS.



Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days  to arrive. Airline and sea shipping also optional.



Q5. How to proceed an order ?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.



Q6: Do you offer guarantee for the products?

A: Yes, we offer 5 years warranty to our products.



Q7: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.1%.



Secondly, during the guarantee period, we will send the new goods with good quality for the faulth. We can discuss the best solution together.
