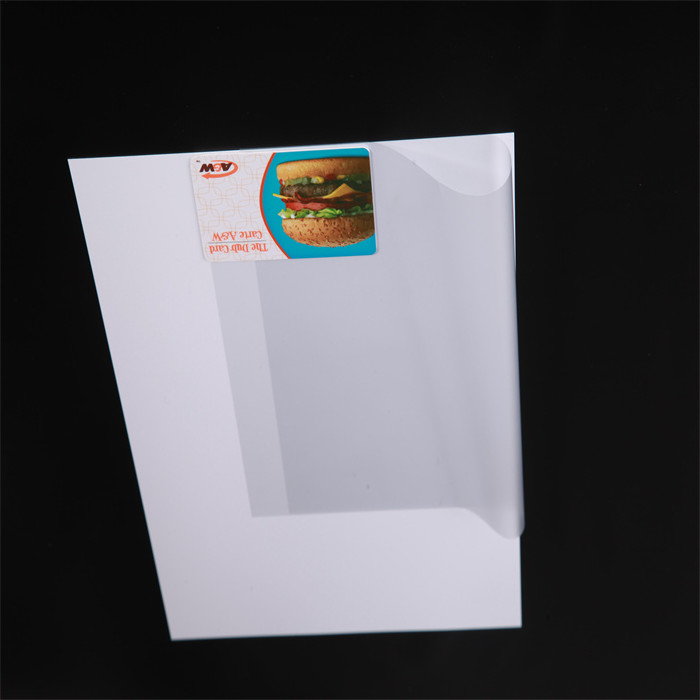

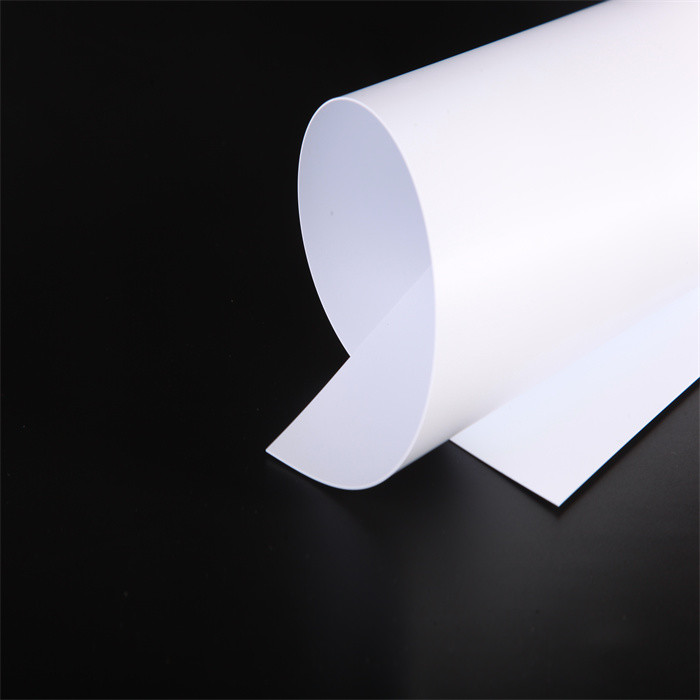

Offset Printing White PVC Core Sheets 330micron For Plastic Cards Lamination
The Offset Printable Plastic Core Sheet 0.33mm offers excellent dimensional stability, ensuring that the cards produced with this PVC Core Sheet maintain their shape and structural integrity over time. This durability is essential for cards that are subjected to frequent handling and use.
The component of this PVC core sheet material is a polyethylene material. It has the advantages of wear-resistance, corrosion-resistance and elegant features ,etc. It can be applied to the basic material usage of PVC screen printing, offset printing card, common bank cards, all kinds of telephone cards and VIP cards ,etc.
One of the key advantages of this PVC Centre Laminate is its exceptional printability and compatibility with various printing techniques. Whether you require digital printing, screen printing, or lithographic printing, this PVC Core Substrate Fil delivers excellent results with sharp detail and color accuracy.
The use of PVC core sheets in PVC card production offers several advantages:
• PVC core sheets provide an affordable option for card manufacturers without compromising on quality. They offer a cost-effective solution for producing large quantities of PVC cards.
• PVC core sheets ensure the longevity of PVC cards, making them resistant to damage and extending their lifespan.
• The core sheets can be customized to meet specific requirements, such as size, shape, and thickness, making them suitable for various card applications.
• PVC core sheets can be easily tailored to accommodate different card sizes, shapes, and design requirements. This flexibility allows for the creation of unique and customized PVC cards.
PVC core sheets possess specific characteristics that make them ideal for PVC card production. Some notable features include:
• PVC core sheets are available in various thicknesses, ranging from 0.2mm to 0.8mm. The choice of thickness depends on the specific requirements of the card and its intended use.
• PVC core sheets have excellent printability, enabling vibrant and high-quality printing of images, text, and other design elements on the card's surface.
• The core sheets have an optimal density that strikes a balance between rigidity and flexibility. This characteristic allows the card to withstand everyday wear and tear.
When selecting PVC core sheets for PVC card production, several factors should be taken into consideration:
• Opt for core sheets that provide excellent printability, enabling high-quality printing of graphics, text, and other design elements on the card.
• Consider the resistance of the PVC core sheet to chemicals, as cards may come into contact with substances like solvents or cleaning agents.
• Ensure that the core sheet strikes the right balance between rigidity and flexibility, allowing the card to withstand bending without breaking.
• Choose a thickness that aligns with the intended use of the card. Thicker core sheets offer more durability, while thinner ones provide increased flexibility.

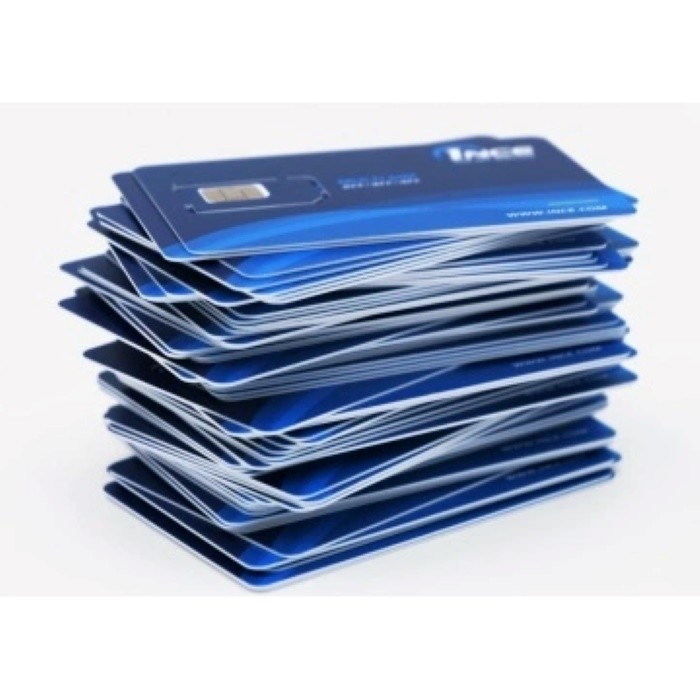

PVC core sheets are widely used in the production of various types of cards, including ID cards, access cards, bank cards, smart cards, business cards, IC cards, Contactless cards, SIM cards, royal cards and other plastic cards.
|
Serial
|
Item
|
|
Unit
|
Standard
|
|
number
|
PVC core sheet
|
|
|
|
|
|
|
|
|
|
|
1
|
Width
|
|
mm
|
As your requirements
|
|
|
|
|
|
|
|
2
|
Length
|
|
mm
|
As your requirements
|
|
|
|
|
|
|
|
3
|
Thickness
|
|
mm
|
0.1-0.8
|
|
|
|
|
|
|
|
|
4
|
Surface Roughness Ra (4#)
|
|
μm
|
0.7-1.8
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5
|
Surface Roughness Rz (5#)
|
|
μm
|
4-12
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
6
|
Tensile Strength
|
MD
|
|
MPa
|
≥45
|
|
|
|
|
|
|
|
|
7
|
Tensile Strength
|
CD
|
|
MPa
|
≥43
|
|
|
|
|
|
|
|
|
8
|
Heat Shrinkage MD
|
|
%
|
≥-6.0(140℃+-2
|
|
|
|
|
|
℃/10min)
|
|
|
|
|
|
|
|
|
9
|
Heat Shrinkage CD
|
|
%
|
≤+2.2(140℃+-2
|
|
|
|
|
|
℃/10min)
|
|
|
|
|
|
|
|
|
10
|
Surface
|
|
—
|
Mate/Mate
|
|
|
|
|
|
|
|
|
11
|
Surface Tension (4#)
|
|
Dynes/cm
|
≥38
|
|
|
|
|
|
|
|
12
|
Surface Tension (5#)
|
|
Dynes/cm
|
≥38
|
|
|
|
|
|
|
|
13
|
Density
|
|
g/cm3
|
1.42+-0.05
|
|
|
|
|
|
|
|
14
|
Vicat Softening Point
|
|
℃
|
78+-2(5KG)
|
|
|
|
|
|
|
|
FAQ
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 1-5 days for Sample preparing ,10-15 working days for mass production.
Q3. Do you have any MOQ limit ?
A: Sample is available, Order MOQ is 1000KGS.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Q7: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.1%.
Secondly, during the guarantee period, we will send the new goods with good quality for the faulth. We can discuss the best solution together.
