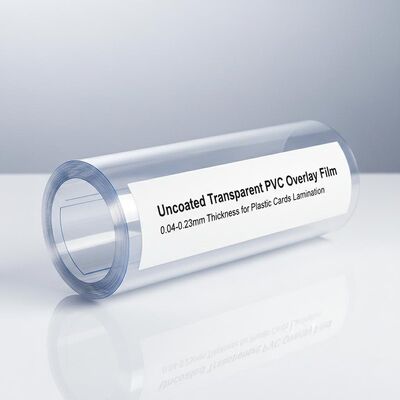

Uncoated Transparent PVC Overlay Film 0.04-0.23mm Thickness for Plastic Cards Lamination

200KGS
MOQ
Negotiable
Price
Uncoated Transparent PVC Overlay Film 0.04-0.23mm Thickness for Plastic Cards Lamination
Features Gallery Product Description Request A Quote
Features
Specifications
Product: Uncoated Transpartent PVC Overlay Film
Material: PVC
Thickness: 0.04-0.23mm
Size: As Client's Requirements
Color: Clear
Density: 1.26 G/cm3
Vicat Soften Point: 74 ℃
Peel Strength: ≥4 N
Surface: No Coating/no Glue
Application: For Plastic Cards Lamination
Basic Infomation
Place of Origin: China
Brand Name: ZL
Model Number: ZL-Overlay-1
Payment & Shipping Terms
Packaging Details: Plastic film packet with wood pallet
Delivery Time: 10-15 working days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 300 tons per month
Product Description
Uncoated Transparent PVC Overlay Film For Plastic Cards Lamination
Uncoated transparent PVC overlay film is a high-quality protective solution designed to enhance the durability and appearance of plastic cards. Ideal for a variety of applications such as ID cards, membership cards, gift cards, and access control cards, this overlay film provides a clear, durable layer that preserves your card's design while offering scratch resistance, long-lasting protection, and improved card longevity.
With its uncoated, transparent design, this PVC overlay film maintains the clarity and sharpness of your card's artwork and security features. It's a cost-effective way to increase the lifespan of your plastic cards without compromising the visual appeal or security.
All inks require an adhesive layer between ink and overlay to provide a superior bond, so we offer a complete range of suitable coatings for all our overlay films to enhance bond strength. These adhesives can be used with UV (offset or silk screen) and oxidative inks. They meet or exceed ISO Peel strength standards and are available in rolls or sheets. We have designed specific coatings to prevent distortion during lamination and offer a wider processing window.
Key Features
  • Environmentally friendly, less emission to the atmosphere
  • Suitable for hot press lamination machine type
  • Provide high bonding strength and give finished cards a glossy surface
  • Customizable size for Card Film PVC Overlay
  • Simplify card production process
  • Anti-abrasion, extend the life of cards
  • Suitable for conventional ink and UV ink
  • Easy for magnetic stripe tape laying
Manufacturing Process
The manufacturing process of PVC overlay involves several steps. Firstly, PVC resin is mixed with additives, plasticizers, and stabilizers to achieve the desired properties and flexibility. This mixture is then processed through a calendaring or extrusion process to form thin sheets of PVC overlay. The sheets are then embossed, printed, or laminated with decorative patterns or textures before being cut into the required sizes and shapes.
PVC overlay is a transparent layer that is applied to the surface of a plastic card. It acts as a protective barrier, shielding the underlying card from scratches, fading, and moisture. The strong coated adhesive ensures that the overlay firmly adheres to the card, providing long-lasting protection.
One side features a smooth surface, while the other side is coated with glue. It has better adaptability to various inks, features much longer aging time and higher peel strength. It is quite suitable for laying magnetic stripes on its surface with dry coating surface and ensures better legibility of anti-fake marks on card surface. The product is environmentally friendly without abnormal smells.
PVC overlays are commonly used in the production of identification cards, such as driver's licenses, ID cards, and access cards. These overlays consist of a thin layer of polyvinyl chloride (PVC) material that is applied on top of the printed card surface. The overlay serves as a protective coating, enhancing the durability and longevity of the card.
Technical Specifications
Serial Number Item Unit Standard
1 Width mm As client's requirements
2 Length mm As client's requirements
3 Thickness mm 0.05-0.2mm
4 Tensile Strength MD MPa ≥40
5 Tensile Strength CD MPa ≥35
6 Heat Shrinkage MD % ≥ -45(140℃±2℃/10min)
7 Heat Shrinkage CD % ≤ 30(140℃±2℃/10min)
8 Density g/cm³ 1.26±0.04
9 Vicat Softening Point ℃ 74±5(5KG)
10 Peel Strength N ≥3
Product Images
Uncoated Transparent PVC Overlay Film 0.04-0.23mm Thickness for Plastic Cards Lamination 0 Uncoated Transparent PVC Overlay Film 0.04-0.23mm Thickness for Plastic Cards Lamination 1 Uncoated Transparent PVC Overlay Film 0.04-0.23mm Thickness for Plastic Cards Lamination 2
Frequently Asked Questions
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 1-5 days for Sample preparing, 10-15 working days for mass production.
Q3. Do you have any MOQ limit?
A: Sample is available, Order MOQ is 200KGS.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Q7: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.1%. Secondly, during the guarantee period, we will send the new goods with good quality for the fault. We can discuss the best solution together.
