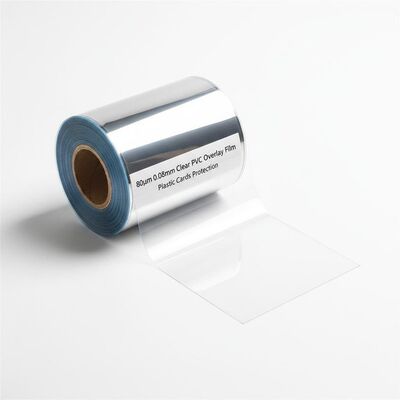

PVC coated overlay film for plastic cards is designed to provide superior protection, durability, and professional finishing for various types of plastic cards, including ID cards, membership cards, credit cards, access control cards, and smart cards. This high-quality lamination film ensures your cards are protected from wear, scratches, and fading, extending their lifespan while preserving the vibrant printing quality.
It has higher peel strength and is suitable for laminating with most PVC sheets printed by various printers. All inks require an adhesive layer between ink and overlay to provide a superior bond, so we offer a complete range of suitable coatings for all our overlay films to enhance bond strength.
| Serial | Item | Unit | Standard |
|---|---|---|---|
| 1 | Width | mm | As client's requirements |
| 2 | Length | mm | As client's requirements |
| 3 | Thickness | mm | 0.05-0.2mm |
| 4 | Tensile Strength MD | MPa | ≥40 |
| 5 | Tensile Strength CD | MPa | ≥35 |
| 6 | Heat Shrinkage MD | % | ≥ -45(140℃±2℃/10min) |
| 7 | Heat Shrinkage CD | % | ≤ 30(140℃±2℃/10min) |
| 8 | Density | g/cm³ | 1.26±0.04 |
| 9 | Vicat Softening Point | ℃ | 74±5(5KG) |
| 10 | Peel Strength | N | ≥4 |
